KT-RFID101 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

FEATURES
Self-intellectual property;
Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);
8dbi antenna optional with effect distance up to 6m*;
Support auto-running, interactive and trigger-activating work mode;
Low power dissipation with single +9 DC power supply;
Support RS232, RS485, Wiegand interface;
Provide DLL and Demonstration Software Source code to facilitate further development.

CHARACTERISTICS
Absolute Maximum Rating
ITEM SYMBOL VALUE UNIT
Power Supply VCC 16 V
Operating Temp. TOPR -10~+60 ℃
Storage Temp. TSTR -25~+80 ℃
Electrical and Mechanical Specification
Under TA＝25℃,VCC＝+9V unless specified
ITEM SYMBOL MIN TYP MAX UNIT
Power Supply VCC 8 9 12 V
Current Dissipation IC 350 650 mA
Frequency FREQ 902 928 MHz
Effective Distance DIS 300 500 cm
INTERFACE
ITEM COMMENT
Red +9V
Black GND
Yellow Wiegand DATA0
Blue Wiegand DATA1
Purple RS485 R+
Orange RS485 R-
Brown GND
White RS232 RXD
Green RS232 TXD
Grey Trigger input(TTL level)
* Effective distance depends on antenna, tag and environment.

uhf rfid reader

uhf rfid tag

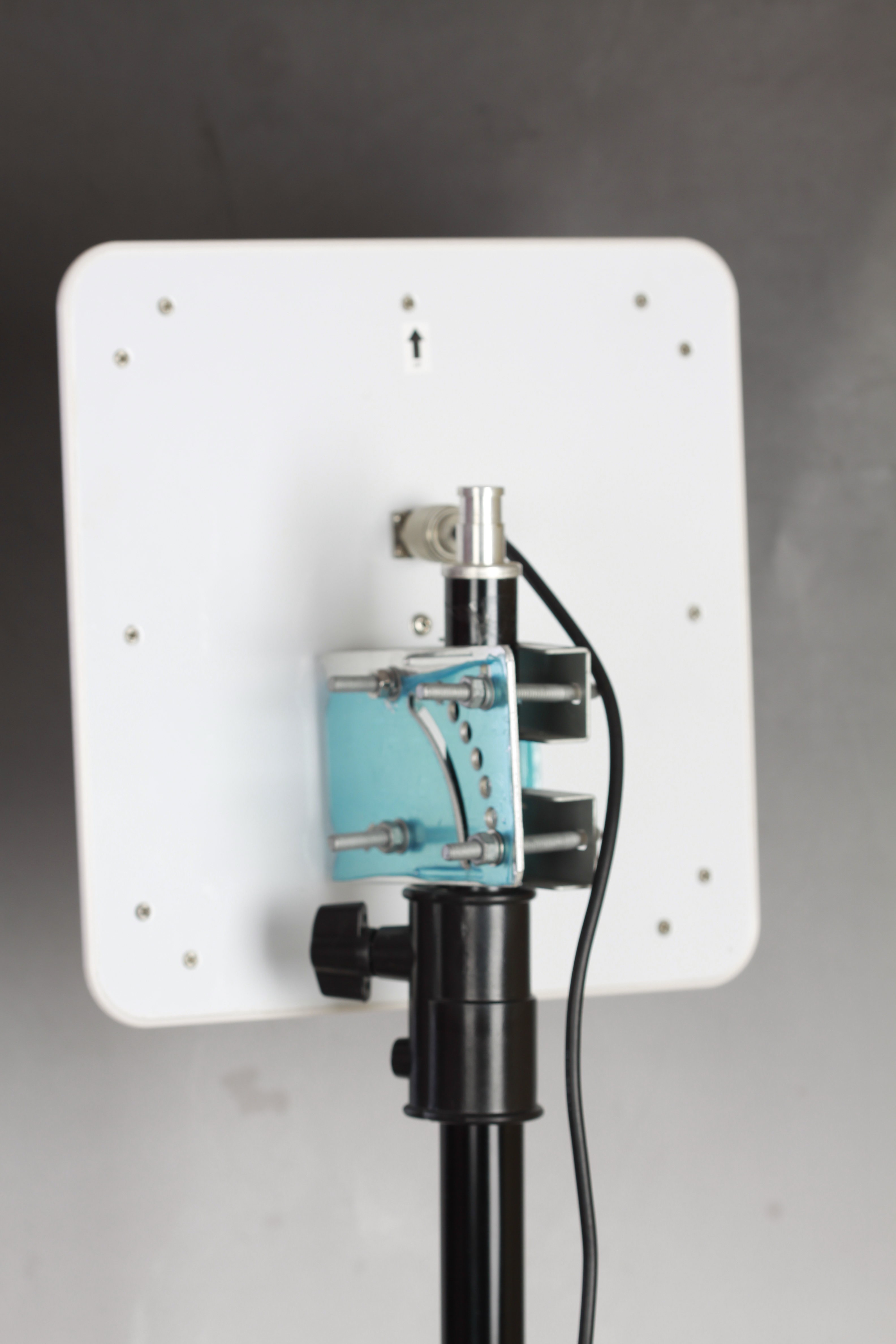

0M - 6M UHF RFID Reader Vehicle Access Control Wiegand RS485 232 Communication Images
